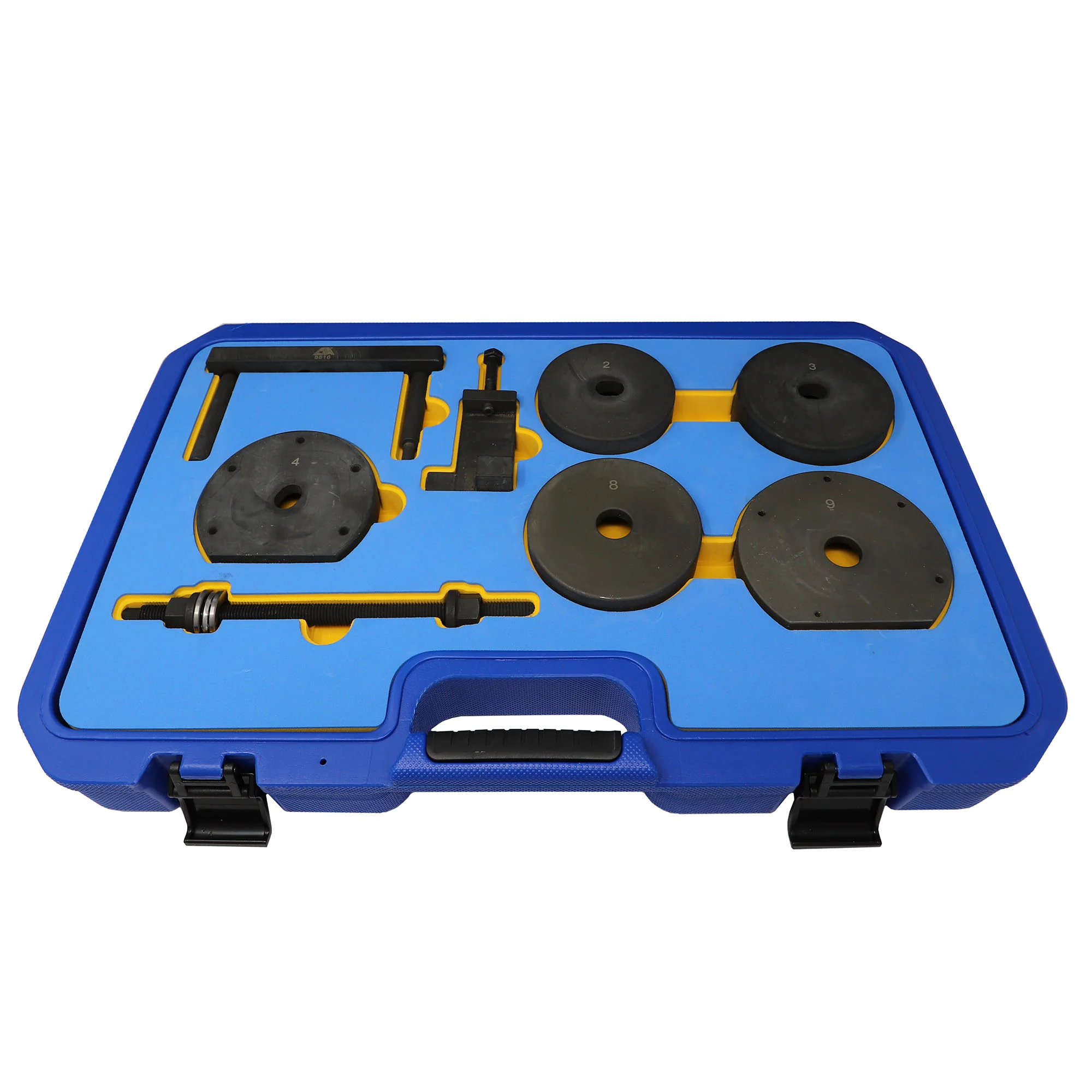

8816 - BMW Transfer Case Bushing R&I Kit - X1, X3, X5 SUV

• Specifically engineered for X-Series - X1 (E84), X3 (E83), X5 (E53/E70), and X6 (E71) AWD models

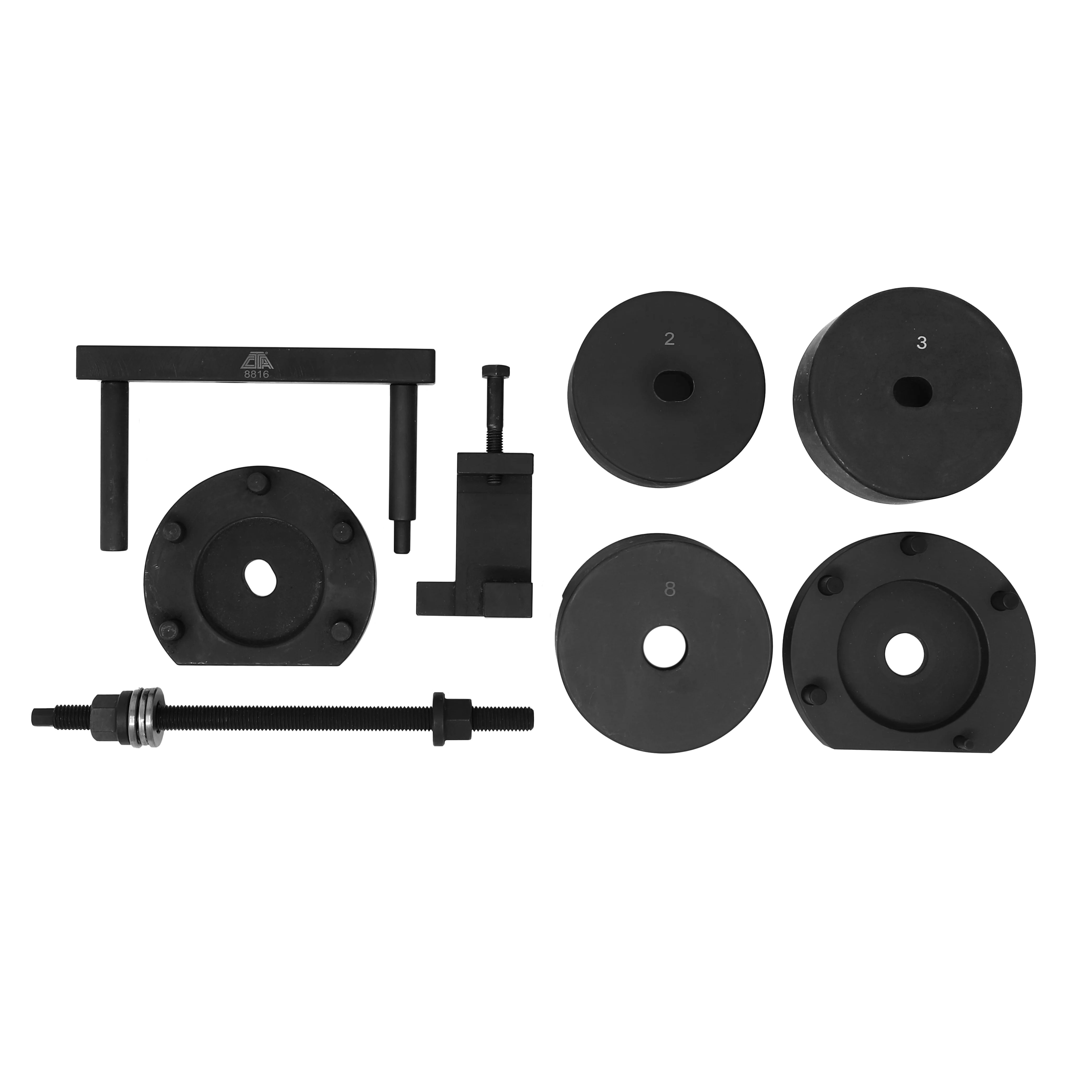

• Features a thrust-bearing press screw and alignment block for smoother operation and improved stability
• Perfect for use on compact SUV platforms where space is limited around the transfer case mount
• Also fits AWD 3 Series and 5 Series models with shared transfer case configurations (2006–2014)
• Includes only the adapters needed for the most popular BMW SUV and small sedan platforms
• Compare to BMW Factory Tools 221051, 221046 (Reflects newer versions of BMW service tools tailored for SUV chassis)


Click here to view product flyer

Applications

Make	Model	Engine	Years
BMW	325xi (E90 3 Series)	N52 3.0L I6	2006
BMW	330xi (E90 3 Series)	N52 3.0L I6	2006
BMW	328xi (E90 3 Series)	N52 3.0L I6	2007–2008
BMW	335xi (E90 3 Series)	N54 3.0L TT I6	2007–2008
BMW	328i xDrive (E9x 3 Series)	N52 3.0L I6	2009–2013
BMW	335i xDrive (E9x 3 Series)	N54/N55 3.0L TT I6	2009–2013
BMW	525xi (E60 5 Series)	N52 3.0L I6	2006–2007
BMW	528xi (E60 LCI 5 Series)	N52 3.0L I6	2008
BMW	530xi (E60 5 Series)	N52 3.0L I6	2006–2007
BMW	535xi (E60 LCI 5 Series)	N54 3.0L TT I6	2008
BMW	528i xDrive (E60 LCI 5 Series)	N52 3.0L I6	2009–2010
BMW	535i xDrive (E60 LCI 5 Series)	N54 3.0L TT I6	2009–2010
BMW	X1 xDrive28i (E84)	N20 2.0L Turbo I4	2013–2015
BMW	X1 xDrive35i (E84)	N55 3.0L Turbo I6	2013–2015
BMW	X3 2.5i (E83)	M54 2.5L I6	2004–2005
BMW	X3 3.0i (E83)	M54 3.0L I6	2004–2006
BMW	X3 3.0si (E83 LCI)	N52 3.0L I6	2007–2010
BMW	X5 3.0i (E53)	M54 3.0L I6	2000–2006
BMW	X5 4.4i (E53)	M62/N62 4.4L V8	2000–2006¹
BMW	X5 4.6is/4.8is (E53)	M62/N62 4.6L/4.8L V8	2002–2006¹
BMW	X5 3.0si (E70)	N52 3.0L I6	2007–2010
BMW	X5 xDrive35i (E70 LCI)	N55 3.0L Turbo I6	2011–2013
BMW	X5 xDrive35d (E70 LCI)	M57 3.0L Turbo Diesel I6	2009–2013
BMW	X5 xDrive50i (E70 LCI)	N63 4.4L TT V8	2011–2013
BMW	X5 M (E70)	S63 4.4L TT V8	2010–2013
BMW	X6 xDrive35i (E71)	N54/N55 3.0L TT I6	2008–2014
BMW	X6 xDrive50i (E71)	N63 4.4L TT V8	2008–2014
BMW	X6 M (E71)	S63 4.4L TT V8	2010–2014

Instructions

Click here to view product instructions

Comparison Chart

Feature:	8814 – AWD Transfer Case Tool	8816 – R&I Kit for X1/X3/X5
Main Coverage:	BMW AWD sedans, coupes & SUVs (3/5/6/7/X1–X6)	BMW SUVs (X1, X3, X5, X6) + 3/5 Series AWD
Years Covered:	2000–2015	2004–2014
Vehicle Types:	Broad range – sedans, SUVs, Rolls-Royce	Focused – compact/mid-size SUVs
Kit Design:	Classic press tool with multiple adapters	Updated press tool with thrust bearing & block
Best For:	Full-range BMW service shops	Shops focused on BMW X-series models
Includes:	Larger adapter selection	Streamlined, SUV-specific components
